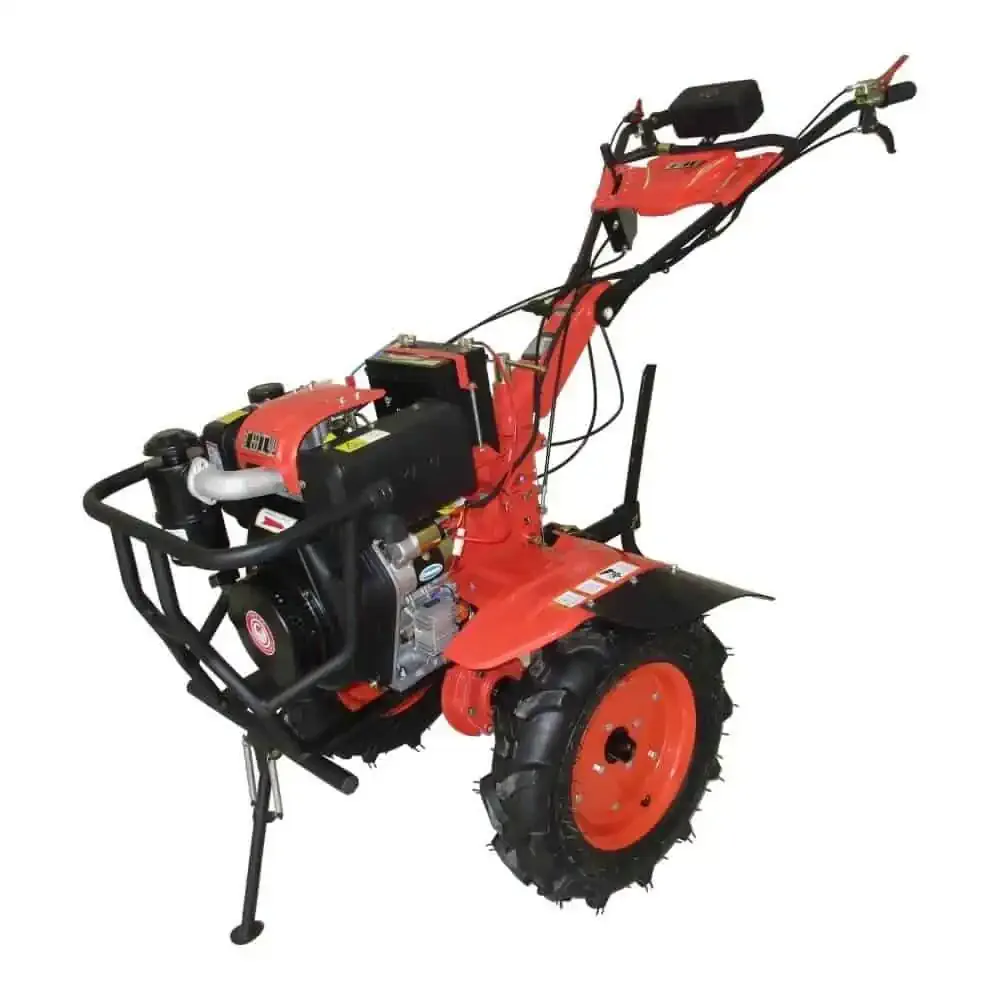

HT135FJ(E) 10hp Diesel Garden Tiller

Diesel Mini Tiller Model HT135FJ HT135FJE
Engine Model 188F 188F
Type of the engine air-cooled,diesel air-cooled,diesel
Engine displacement(cm3) 456 456
Bore×stroke (mm) 88x75 88x75
Max.speed of the engine(min-1) 3600 3600
Engine idling speed range (min-1) 1300 1300
Max. power of the engine(kW) 7 7
Rate power of the engine(kW) 6.5 6.5
Volumes of oil tank (L) 1.65 1.65
Volumes of fuel tank (L) 5.5 5.5
Capacity Kind of drive Gear driving Gear driving
Type of clutch wet friction plate wet friction plate
Working width (mm) 800~1350 800~1350
Working depth (mm) 150-300 150-300
Weight (kg) 160/170 164/174
Dimension(mm)(L×W×H) 1750×930×1140 1750×930×1140
