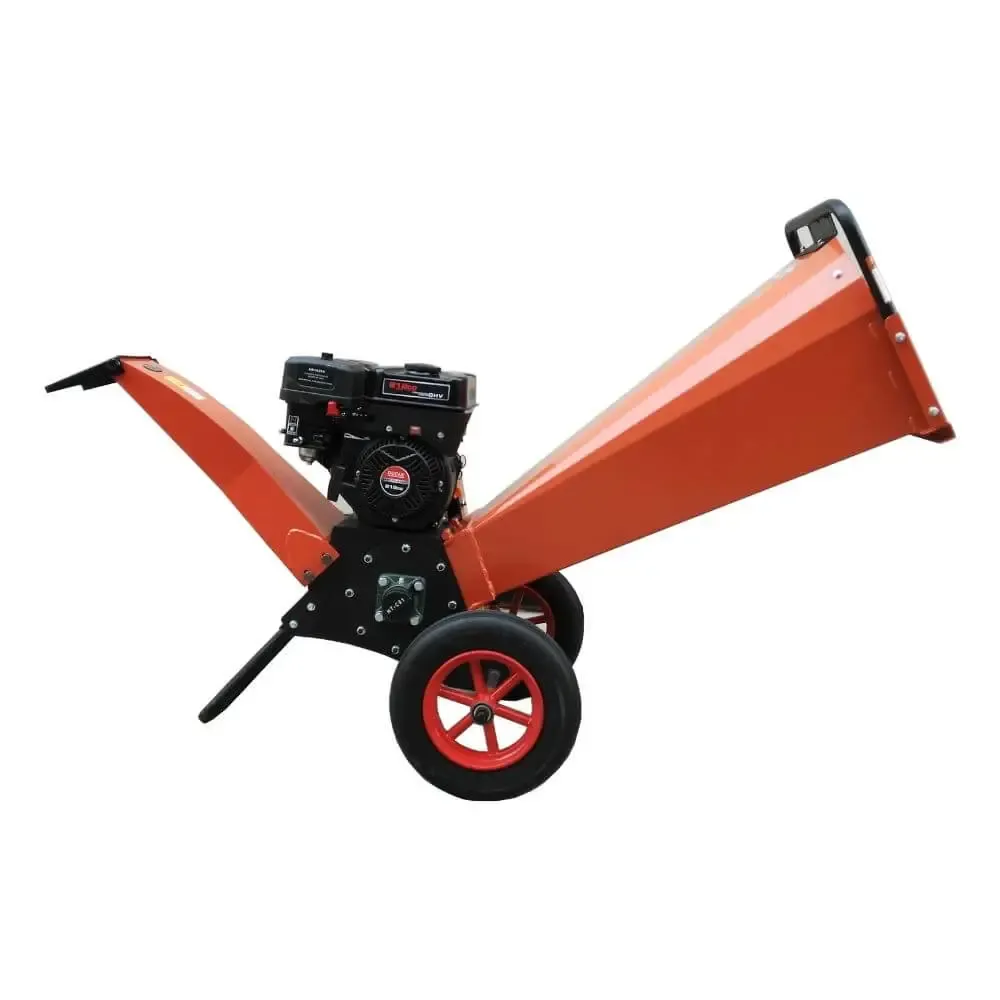

| Model | HT-C01 | ||
|---|---|---|---|
| wooden chipper | Max. diameter branches | 6cm | |
| Input height | 750cm | ||
| Input mouth size | 35*28cm | ||
| Output height | 600mm | ||
| Emergency button | W | ||
| Wheel diameter | 35cm | ||
| Wheel | Ballbearing | ||
| Blade pcs | 2move+1fix | ||
| Dim（LxWxH） | 1500*600*1450mm | ||
| G.W. | 100KGS | ||
| Engine | Engine Model | 170F | |
| Engine Type | Single cylinder, 4-stroke, air-cooled,gasoline |
||
| Displacement(ML) | 212.00 | ||
| Bore x stroke(mm) | 70x54 | ||
| Rated Power(hp/rpm) | 7.5hp(3600) | ||
| Fuel | 92# petrol | ||
| Fuel Tank Capacity(L) | 3.60 | ||
| Fuel consumption(L/h) | 《0.8 | ||
| Starting | Manual | ||
| Packing | Package material | wooden box | |
